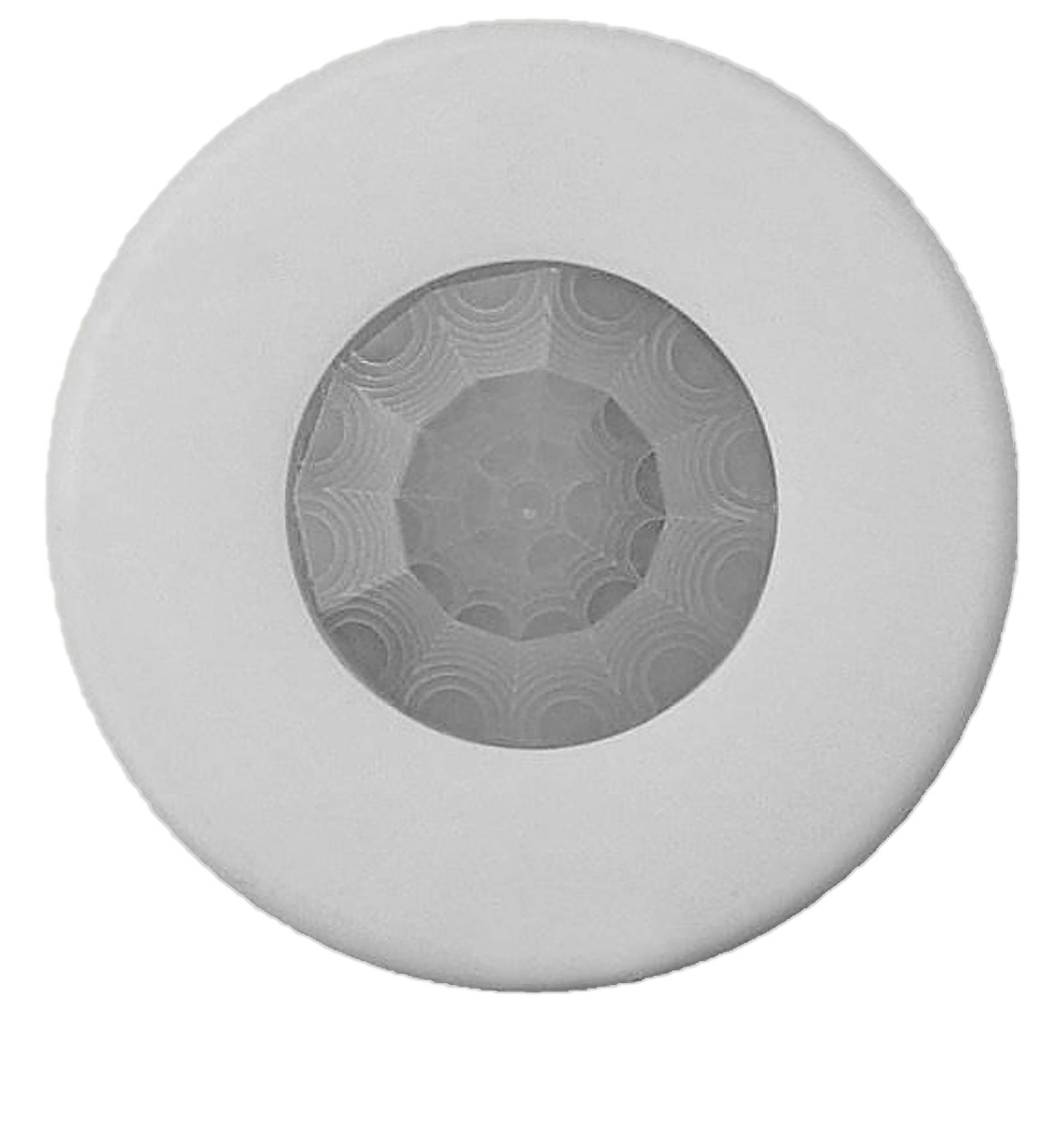

PPD-C-230V

Ceiling mounted PIR presence detector

The PPD-C-230V is a stand alone mains voltage powered, ceiling mounted PIR (passive infrared) presence detector which provides automatic control of lighting, heating or ventilation loads. It detects movement using a PIR sensor to turn the load on. When an area is no longer occupied the load will switch off after an adjustable time out period.

An adjustable internal light sensor provides additional energy saving in lighting applications. When an area is occupied lighting is only switched on when the level of natural light is below a preset level.

When the unit is first powered up the PIR sensor will always detect immediately regardless of whether the room is occupied.

Ppd C 230v

Features

  • PIR Sensor: Detects movement within the unit’s detection range, allowing load control in response to changes in occupancy
  • Adjustable sensitivity
  • Adjustable light level sensor: Measures the overall light level in the detection area for light level threshold switching
  • Status LEDs
  • Power Input & Switched Output Connector: Used to connect mains power to the unit and to connect a switched load
  • Programmed using adjustments on the sensor head

Code Compliance

  • Improves BREEAM & LEED scoring for building sustainability
  • Contributes to energy reduction targets under Climate Change Levy (CCL) and Carbon Reduction Commitment (CRC)
  • Qualifies for Enhanced Capital Allowance (ECA) applications
  • Delivers lighting control requirements under UK Building Regs - L2a & L2b and BRE: 498
