PPAD-C-DALI-230V

Ceiling mounted PIR presence/absence detector DALI / DSI dimming

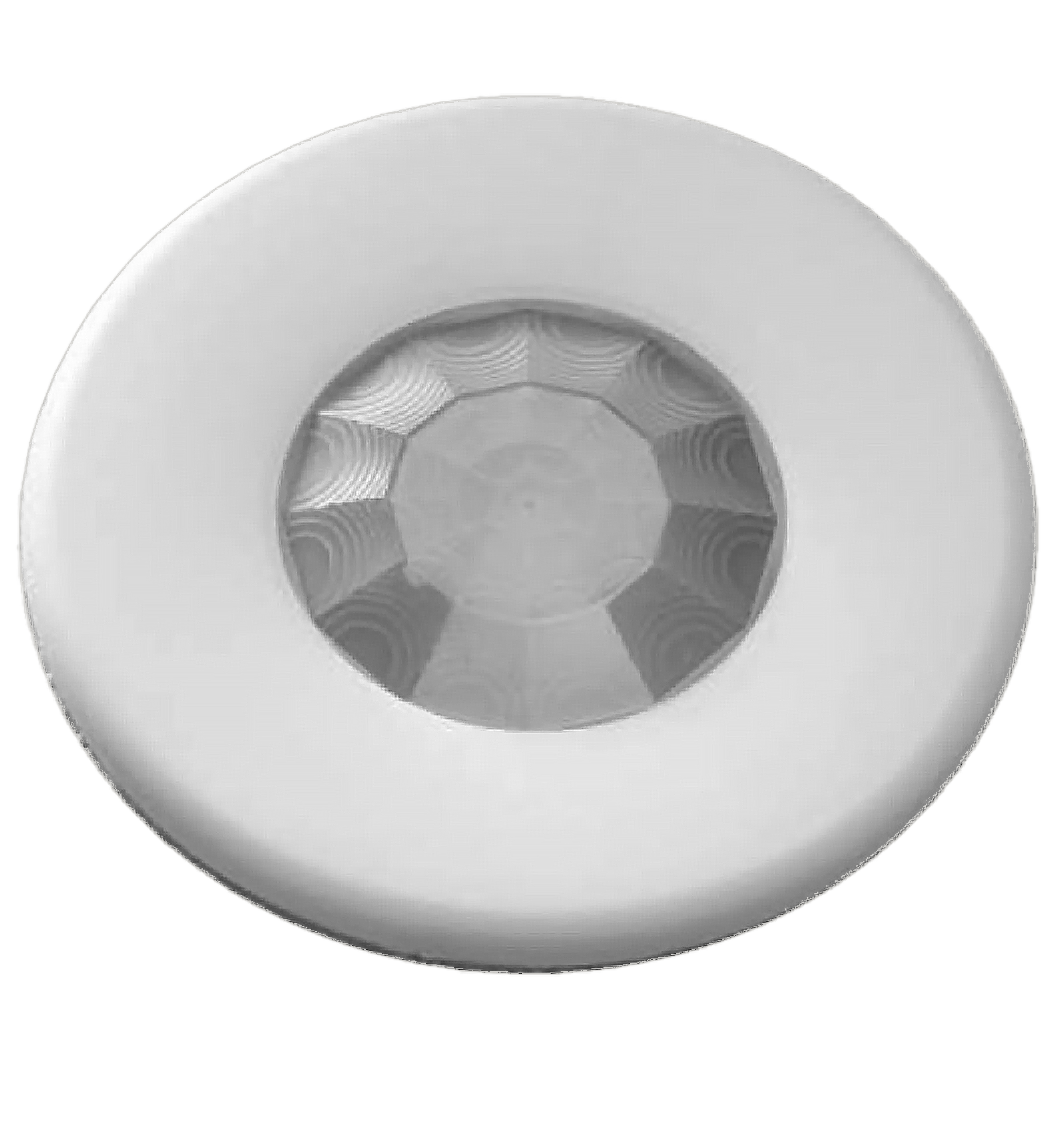

The PPAD-C-DALI-230V is a mains voltage powered, ceiling mounted PIR (passive infrared) presence/absence detector which provides automatic control of lighting loads with optional manual control. Output Channel 1 comprises a mains voltage relay capable of simple on/off switching, while Output Channel 2 provides dimmable control of either DALI or DSI type ballasts.

This unit can operate both in presence and absence mode as well as in response to ambient daylight levels.

The flexibility of having two channels and two switch inputs allows the following example scenarios:

  • Dim an outside row of luminaires whilst internal fittings are switched
  • Provide absence detection for two separate channels
  • Maintained illuminance system with manual up/down controls


All functionality is fully programmable using an IR handset (ordered separately).

Ppad C Dali 230v

Features

  • PIR Sensor: Detects movement within the unit’s detection range, allowing load control in response to changes in occupancy
  • Absence and overide to on/off via switch input
  • IR Receiver: Receives control and programming commands from an IR (infrared) handset
  • Light Level Sensor: Measures the overall light level in the detection area
  • Status LEDs
  • Power Input & Switched Output Connector: (Channel 1) Used to connect mains power to the unit and to connect a switched load
  • Dimmable Control Output Connector: (Channel 2) Used to connect DSI/DALI controllable ballasts and transformers for dimmable loads
  • Switch Input Connector: Two input terminals can be used to manually override the dimming levels and override the lights on or off

Code Compliance

  • Switch Input Connector: Two input terminals can be used to manually override the dimming levels and override the lights on or off
  • Contributes to energy reduction targets under Climate Change Levy (CCL) and Carbon Reduction Commitment (CRC)
  • Qualifies for Enhanced Capital Allowance (ECA) applications
  • Delivers lighting control requirements under UK Building Regs - L2a & L2b and BRE: 498
