EN3-SCMR1210

This 12 channel high powered intelligent switching unit provides outstanding features and performance at a truly competitive price. It is fully rated for 10 Amps per channel of continuous inductive lighting load. This unit is designed for switching large lighting loads of most types. With a 128 scene integral memory this device offers multiple control options to meet the most demanding specifications.

With iLight’s iCAN network connectivity, it has the capability of being linked with a virtually limitless number of other iLight products to build up to any size of system. This product is designed for projects where there are multiple channels of Architectural lighting. It is the perfect choice for shopping malls, atria exterior lighting and industrial areas.

The knockouts to the top of the enclosure have been designed to line up with any of the original iLight source controllers making replacement quick and easy in a retrofit environment.

A dedicated knockout is provided for iCANnet connection to the EN3-SCMR1210 and several accessories are available to aid the installer in connection of the iCANnet network.

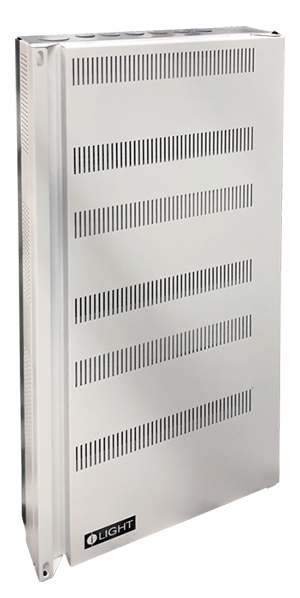

En3 Scma0401 300px

Features

  • 12 x 10 Amp channels
  • Switches resistive, inductive and capacitive lighting loads
  • Manual override of any channel
  • Integral processor
  • DALI in (12 address DALI end device)
  • RS485 / DMX512 in
  • 2 x Auxiliary Inputs
  • Configuration stored in Non Volatile EEPROM
  • Firmware storage in reflashable FLASH memory over iCAN network
  • Configurable start up mode
  • All metal construction
  • Lockable hinged door
  • Front panel and door ventilation
  • CE & UKCA compliant to all relevant standards
  • Designed and manufactured to IS09001 standard
