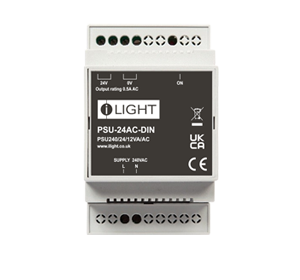

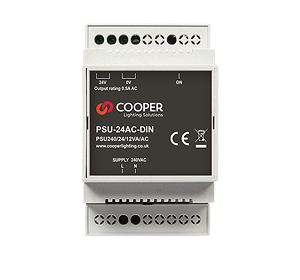

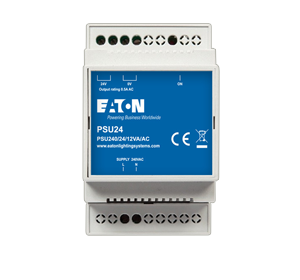

PSU-24VAC-DIN

24V AC Power Supply for HVAC-1

PSU-24AC-DIN provides a 24V AC output for powering the HVAC-1. With a 12VA output this is an ideal PSU where power isnt provided by the fan coil itself.

PSU-24AC-DIN also incorporates fuse protection via a self resetting fuse.

Psu 24ac Din 300x280px Cls Pp

Features

  • Input: 240V AC
  • Output: 24V AC
  • Power Output: 12VA
  • Operating Temperature: 0 to 50˚C
  • Terminals: 1.0mm recommended 2.5mm max
  • Dimensions: 82mm (H) x 90mm (W) x 80mm (D)

Downloads

Need more information?

Visit our support page to contact your regional iLight Sales Manager or local iLight Distributor.
