PSU-15-DIN10WC

15V - 10W Power supply unit for DIN rail mounting

The PSU-15-DIN10WC is a DINrail mounted power supply with a single fixed output rating of 10W at 15V.

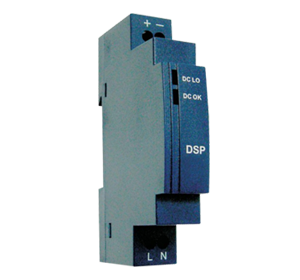

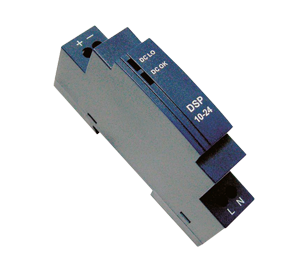

Psu 15 Din10wc 300x280px

Electrical Data

  • AC Input Voltage range: 90 - 264VAC, Class II double insulated
  • Input Frequency: 47 - 63Hz
  • DC Input Voltage range: 120 - 370VDC
  • Inrush Current (115 / 230VAC): 15 / 30A
  • Output Voltage Accuracy %: ±1% of Nominal
  • Overcurrent Protection (Typ): 110 - 160%, fold forward under short circuit
  • Overvoltage Protection V: 120 - 145%
  • LED Indicators: Green LED = On, Red LED = DC Output Low
  • Operating Temperature: -25 to +71°C
  • Operating Humidity: 20 to 95% RH (non condensing)
  • Cooling: Convection
  • Immunity: EN61000-4-2, -3, -4, -5, -6, -8 & -11
  • Conducted & Radiated EMI: EN55022 class B

Features

  • Low 56mm Profile
  • Wide Range AC input
  • Full Power at 61°C
  • Fits into wall mounted cabinets
  • Global use with no input selector switches
  • No derating needed
