FLT-HPRS-DALI

DALI Field Relay

The iLight Field Relay provides On/Off control and network connectivity in order to conserve energy and effectively manage the lighting system. The Field Relay uses advanced switching technology specifically designed to handle the large inrush currents and inductive loads found in lighting applications.

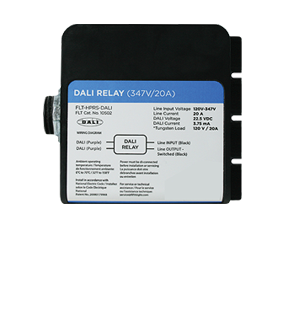

Flt Hprs Dali 300x317px

Features

  • Maximum Load: 20 Amps
  • Automatic loss of power detection defaults relay to closed (On) position
  • DALI power consumption: 3.75mA
  • Dimensions: 88 x 80 x 39mm
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards
