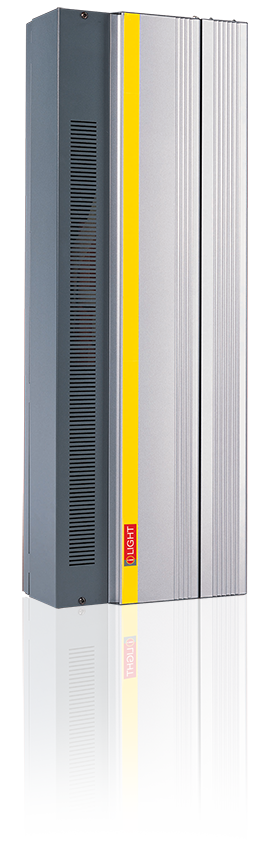

12 x 20 iCAN inductive source controller

This 12 channel unit provides comprehensive features and performance at at truly competitive price. It is fully rated for 80 Amps three phase of continuous inductive lighting load. Whether used for tungsten, low voltage or cold cathode light sources, this unit will provide reliable service over many years. With a 128 scene integral memory, this device offers multiple control options to meet the most demanding specifications.

With iLight’s iCAN network connectivity, it has the capability of being linked with a virtually limitless number of other iLight products to build up to any size of system. This product is designed for projects where there are multiple channels of Architectural lighting. It is the perfect choice for hotel ballrooms, atria and large themed restaurants and museums. With an optional DMX512 control input, it is a highly adaptable product.

  • Suitable for 80 Amp 3 phase supply
  • MCB protection behind lockable hinged cover
  • Input isolator included (except 'D' version)
  • Dimensions 850 x 330 x 155mm
    (RCBO & RCBOX: 850 x 374 x 155mm)
  • Weight 22 Kilograms (D - 23.5 Kilograms
    RCBO & RCBOX - 24 kilograms)

Available options include:
S - Single Pole
N - Neutral Disconnect
D - Double Pole
RCBO - RCBO Breakers
RCBOX - Field fitting of RCBOs

Sci1220 270px


  • 12 x 20 Amp rated source controller
  • Dims resistive, inductive and low voltage electronic transformer loads (that are compatible with leading edge dimmers)
  • Quiet operation
  • 128 scene memory
  • Multiple choice of circuit protection
  • Security door for MCBs
  • Optional RCBO per channel
  • Fail to full safety feature
  • iCAN network inputs
  • DMX input option
  • Audio Visual Port (RS485)
  • Temperature Monitoring
  • Panic/Fire alarm input
  • Configuration stored in Non Volatile EEPROM
  • Firmware storage in reflashable FLASH memory over iCAN network
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards
