12 x 10 Amp HF Ballast controller module

This compact digital dimming and switching controller provides 12 switched power circuits with 12 channels of scene set dimming for Broadcast DALI, DSI or 1-10V control. Its 10 Amp power relays make it suitable for independent non-dimmable loads as well.

In addition to the iLight iCANnetâ„¢ network connectivity, it also has an audio visual port. It is suitable for controlling other 0-10 volt devices, such as a motorised Iris in a projector and 0-10 and DSI / DALI controlled transformers, and cold cathode. It is typically used on its own in medium to larger spaces that need manageable and controlled light, such as open plan offices, auditoria circulation lobbies, or as part of a comprehensive network in large building complexes.

  • 1-10V, DSI or Broadcast DALI control
  • Suitable for 40 Amp 3 phase supply
  • MCB protection behind lockable hinged cover
  • Input isolator included (except 'D' version)
  • Dimensions: 550 x 220 x 155mm
    (D - 690 x 220 x 155mm. RCBO & RCBOX - 550 x 255 x 155mm)
  • Weight: 9 Kilograms (D, RCBO & RCBOX - 10.5 Kilograms)

Available options include:
S - Single Pole
N - Neutral Disconnect
D - Double Pole
RCBO - RCBO Breakers
RCBOX - Field fitting of RCBOs

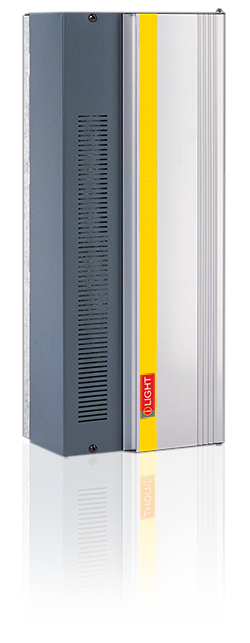

Sch1210 250px


  • 120 Amp total box load on 12 circuits
  • Broadcast DALI, DSI or 1-10V control
  • 128 scene memory
  • Multiple choice of circuit protection
  • Security door for MCBs
  • Optional RCBO per channel
  • Fail to full safety feature
  • iCAN network inputs
  • Audio Visual Port (RS485)
  • Panic/Fire alarm input
  • Configuration stored in Non Volatile EEPROM
  • Firmware storage in reflashable FLASH memory over iCAN network
  • CE compliant to all relevant standards
  • Designed and manufactured to IS09001:2015 standards
