iLight fixed format source controllers are mechanically elegant, safe and practical to use.

The iLight range of convection cooled source controllers may be configured for a wide variety of breaker and load types making them one of the most versatile and flexible control solutions on the market today.

A wealth of detailed features such as lockable hinged doors and top and bottom cable access make these units suitable for installation in almost any location, contractor friendly and convenient to live with.

Fixed Format Controllers

Inductive

Designed to dim from the low voltage side of a transformer or on LED lighting, with dim resistive, inductive and low voltage electronic transformer loads (compatible with leading edge dimmers). Can also be used to dim LED lamps that are powered by a constant current 230V LED driver.

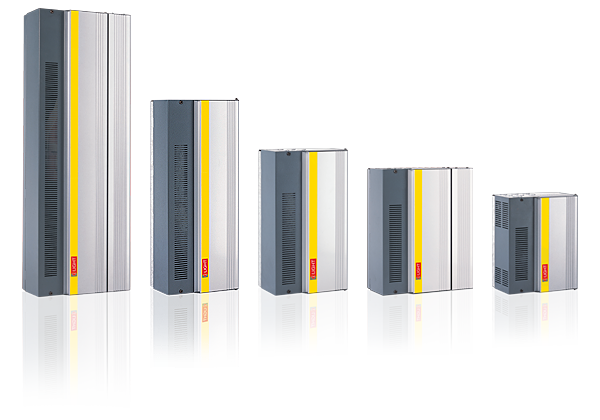

Inductive Dimmers Group 1

SCI0405

A 4 circuit economy source controller fully rated for 4 x 5 Amps of continuous inductive or resistive lighting loads. Whether used for tungsten, low voltage or cold cathode light sources.

SCI0410

A 4 circuit robust source controller fully rated for 4 x 10 Amps of continuous inductive lighting loads. Used for tungsten, low voltage or cold cathode light sources.

SCI0420

A 4 circuit robust source controller fully rated for 4 x 20 Amps of continuous inductive lighting loads. Used for tungsten, low voltage or cold cathode light sources.

SCI1205

A 12 circuit economy source controller fully rated for 12 x 5 Amps of continuous inductive or resistive lighting loads. Used for tungsten, low voltage or cold cathode light sources.

SCI1210

This 12 channel unit provides comprehensive features and performance at at truly competitive price. It is fully rated for 40 Amps three phase of continuous inductive lighting load.

SCI1220

This 12 channel unit provides comprehensive features and performance at at truly competitive price. It is fully rated for 80 Amps three phase of continuous inductive lighting load.

Fix Format Controllers

Adaptive

Controller outputs can be adapted to resistive, inductive and capacitive load types. Complete with iPROTECTâ„¢ lamp protection and auto short circuit protection, these phase-adaptive dimmers control a wide variety of bulbs by automatically sensing the load type and adjusting to provide the best performance. Channels may be selected for leading and trailing edge operation. These controllers also have a quiet operation.

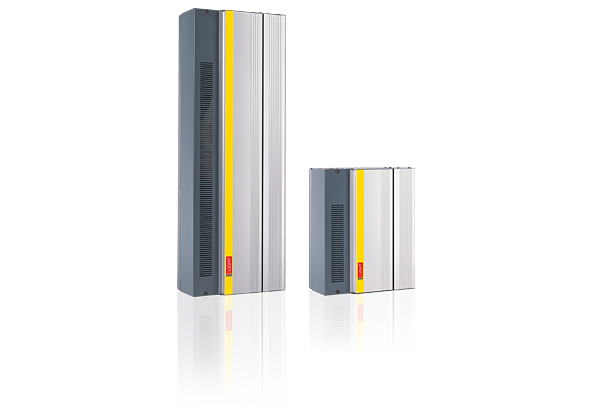

Adaptive Dimmers Group

SCA0410

This 4 x 10 amp adaptive source controller is designed to provide scene set dimming of lighting loads that require either leading or trailing edge dimming. This FET based adaptive dimmer is suitable for resistive, inductive and capacitive loads.

SCA1210

This 12 x 10 amp adaptive source controller is designed to provide scene set dimming of lighting loads that require either leading or trailing edge dimming. This FET based adaptive dimmer is suitable for resistive, inductive and capacitive loads.

Fix Format Controllers

Digital

With digital dimming the driver receives a digital signal which tells it how to respond. Another advantage of digital dimming is that fixtures are also addressable and you can have extensive levels of light output. Suitable for Broadcast DALI, DSI or 1-10 volt control configurable with iLight software. With 230V switched relay outputs.

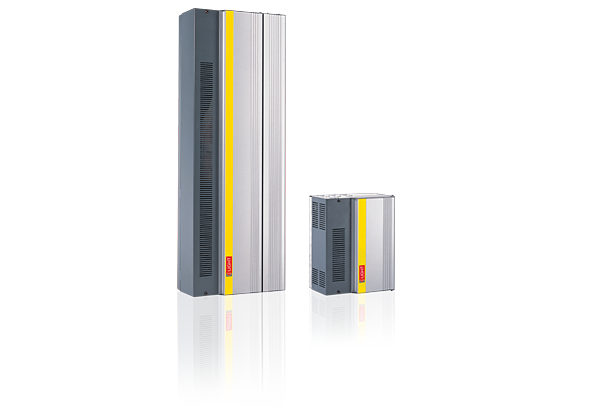

Digital Dimmers Group

SCH0410

This compact digital dimming and switching controller is a 4 channel device that provides 4 switched power circuits with 4 channels of scene set dimming for Broadcast DALI, DSI or 1-10V control. Its 10 Amp power relays make it suitable for independent non-dimmable loads as well.

SCH1210

This compact digital dimming and switching controller provides 12 switched power circuits with 12 channels of scene set dimming for Broadcast DALI, DSI or 1-10V control. Its 10 Amp power relays make it suitable for independent non-dimmable loads as well.

SCH1220

This compact digital dimming and switching controller provides 12 switched power circuits with 12 channels of scene set dimming for Broadcast DALI, DSI or 1-10V control. Its 20 Amp power relays make it suitable for independent non-dimmable loads as well.

Fix Format Controllers

Switched/Relay

Switching of resistive, inductive or capacitive lighting loads.
Relay Dimming uses the wall switch to send messages to a low-cost receiver module installed in any standard LED fixture with a 0-10V driver. These controllers have a quiet operation, and when functioning together, smooth dimming to any level is easily achieved.

Switched Relay Dimmers Group

SCS0410

This 4 channel high powered intelligent switching unit provides outstanding features and performance at a truly competitive price. It is rated for 40 Amps single phase of continuous inductive lighting load.

SCS0420

This 4 channel high powered intelligent switching unit provides outstanding features and performance at a truly competitive price. It is rated for 80 Amps single phase of continuous inductive lighting load.

SCS1210

This 12 channel high powered intelligent switching unit provides outstanding features and performance at a truly competitive price. It is fully rated for 40 Amps three phrase of continuous inductive lighting load.

SCS1220

This 12 channel high powered intelligent switching unit provides outstanding features and performance at a truly competitive price. It is fully rated for 63 Amps three phrase of continuous inductive lighting load.

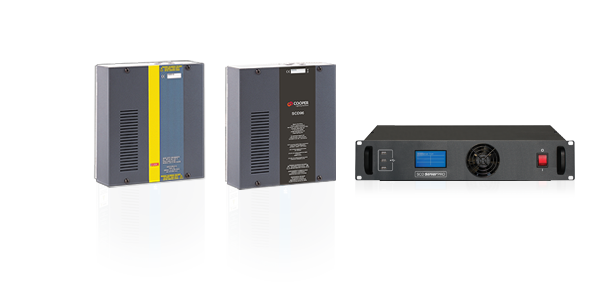

Fixed Format Controllers

DMX

The SCD range provides a bridge between an architectural lighting control network and a DMX performance lighting system for dynamic colour change and effects making it ideal for themed attractions, facades, shopping centres and other public building applications. SCD units are designed to provide scene set dimming output for any DMX512 controlled load.

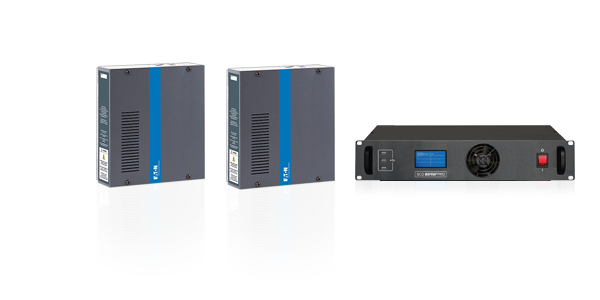

Fixed Format Controllers Dmx Group 1

SCD Server Pro

SCD Server Pro is a rack mounted, fully featured DMX lighting controller ideal for use in larger performance installations and networks. It provides a bridge between a performance lighting system and an architectural lighting control network making it ideal for permanent installations such as facades, landscapes, theme parks, conference centres and other public building applications.

SCD96

The SCD96 is a 96 channel DMX source controller. It is designed to provide scene set dimming output for any DMX512 controlled load. The unit incorporates 8 general purpose 3A relay devices which overlay channels 1-8 and 8 digital outputs which overlay channels 9-16.

SCD24

The SCD24 is a 24 channel DMX controller. It is designed to provide scene set dimming for any DMX512 controlled load via the iLight network.
